| Part No |
90NR0ID6-M000E0 |
| Model Name |
G814JIR-N6009W |
| TTV |
2023-11-27 |
| End of Production |
2024-12-31 |
| EAN Code |
4711387379608 |
| UPC Code |
197105379602 |
| WEEE |
3.333 |
| BASE UNIT |
VSNR0ID6-BU2110 |
| |
|
| Marketing Name |

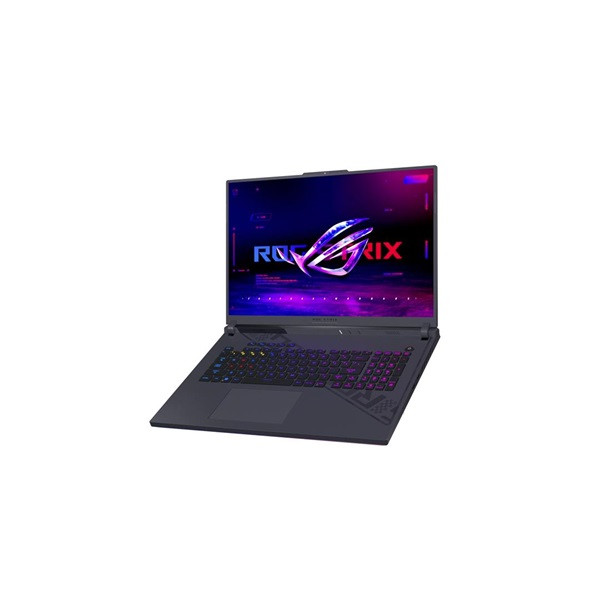

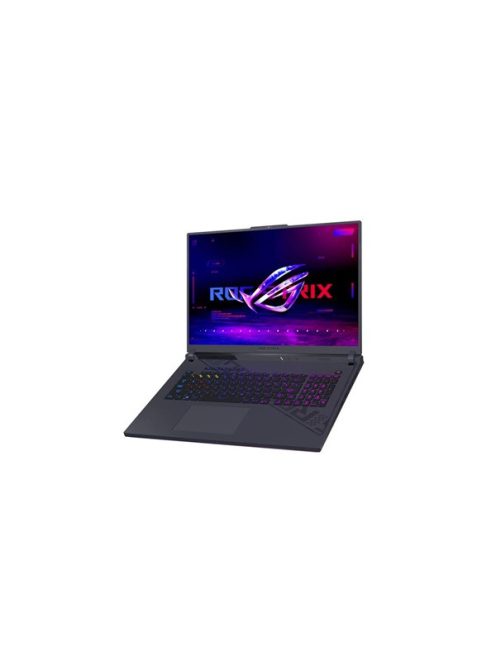

ROG Strix G18 |
| Color |
Eclipse Gray |
| Dimension (W x D x H) |
39.9 x 29.4 x 2.31 ~ 3.08 cm (15.71" x 11.57" x 0.91" ~ 1.21") |
| Weight |
3.00 Kg ( lbs) |
| Processor |
Intel Raptor Lake i9-14***HX-T6K(8P+16e) |
| Chipset |
Mobile Intel® HM770 Express Chipsets |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 4070 Laptop GPU |
| Graphic Wattage |
ROG Boost: 2225MHz* at 140W (2175MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory |
8GB GDDR6 |
| IGPU |
Intel® UHD Graphics |
| Panel Size |
18-inch |
| Resolution |
QHD+ 16:10 (2560 x 1600, WQXGA) |
| Refresh Rate |
240Hz |
| Response Time (G2G) |
3ms |
| Viewing Angle |
85/85/85/85 |
| Panel Tech |
IPS-level |
| Brightness |
500nits |
| Contrast |
1000:1 |
| DCI-P3 % |
100.00% |
| Anti glare |
Anti-glare display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula Display |
| Support Dolby Vision HDR |
Yes |
| On board memory |
N/A |
| DIMM Memory |
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC |
| Total System Memory |
DDR5 16GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory |
| System Storage Installed |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
512GB/1TB/2TB G4x4 PCIe SSD |
| Expansion Slot (includes used) |
2x DDR4 SO-DIMM slots
2x PCIe |
| LAN |
10/100/1000 Mbps |
| On board Wireless |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Wi-Fi/Bluetooth |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x RJ45 LAN port
1x Thunderbolt™ 4 support DisplayPort™
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC
2x USB 3.2 Gen 2 Type-A |
| Display output |
1x HDMI 2.1 FRL |
| Audio |
1x 3.5mm Combo Audio Jack |
| Webcam |
720P HD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard Per-Key RGB |
| NumberPad |
N/A |
| Aura Sync |
Yes |
| Speakers |
2-speaker system with Smart Amplifier Technology |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology |
| Operating System |
Windows 11 Home |
| Antivirus |
McAfee® 30 days free trial |
| Xbox Game Pass |
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security |
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
o6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal |
| Ecolabels & Compliances |
ENERGY STAR® |
