| Part No |
90NR0H23-M000P0 |
| Model Name |
GU603ZV-N4007W |
| |
|
| EAN Code |
4711387073438 |
| UPC Code |
197105073432 |
| |
|
| Marketing Name |
ROG Zephyrus G16 |
| Color |
Eclipse Gray |
| Dimension (W x D x H) |
35.5 x 24.3 x 1.99 ~ 2.23 cm (13.98" x 9.57" x 0.78" ~ 0.88") |
| Weight |
2.00 Kg ( lbs) |
| Processor |
12th Gen Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores) |
| Chipset |
N/A |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 4060 Laptop GPU |
| Graphic Wattage |
ROG Boost: 2300MHz* at 120W (2250MHz Boost Clock+50MHz OC, 100W+20W Dynamic Boost) |
| Graphic Memory |
8GB GDDR6 |
| IGPU |
Intel® Iris X? Graphics (Intel® Iris X? Graphics in Dual Channel; Intel® UHD Graphics in Single Channel) |
| Panel Size |
16-inch |
| Resolution |
QHD+ 16:10 (2560 x 1600, WQXGA) |
| Refresh Rate |
240Hz |
| Viewing Angle |
85/85/85/85 |
| Panel Tech |
IPS-level |
| Brightness |
500nits |
| Contrast |
1200:1 |
| DCI-P3 % |
100% |
| Anti glare |
Anti-glare display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula Display |
| Support Dolby Vision HDR |
Yes |
| On board memory |
16GB DDR4 on board |
| Total System Memory |
DDR4 16GB |
| Memory Slot |
1x SO-DIMM slot |
| Memory Max. |
48GB |
| System Storage Installed |
512GB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
Performance PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB
SSD M2 2280 P4X4 2TB
Value PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB
SSD M2 2280 P4X4 2TB |
| Expansion Slot (includes used) |
1x DDR4 SO-DIMM slot
2x PCIe |
| LAN |
10/100/1000 Mbps |
| Wi-Fi/Bluetooth |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |

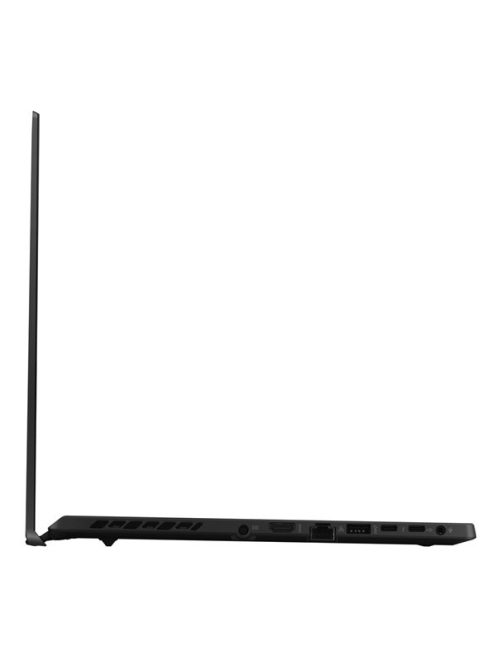

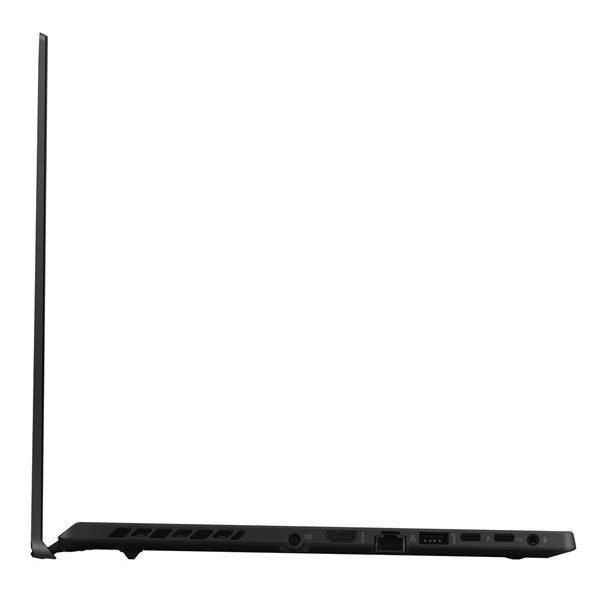

| I/O Ports |
1x RJ45 LAN port
1x Thunderbolt™ 4 support DisplayPort™ / power delivery
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
2x USB 3.2 Gen 2 Type-A
1x card reader (microSD) (UHS-II) |
| Display output |
1x HDMI 2.1 FRL |
| Audio |
1x 3.5mm Combo Audio Jack |
| Webcam |
720P HD IR Camera for Windows Hello |
| Mic |
Built-in array microphone |

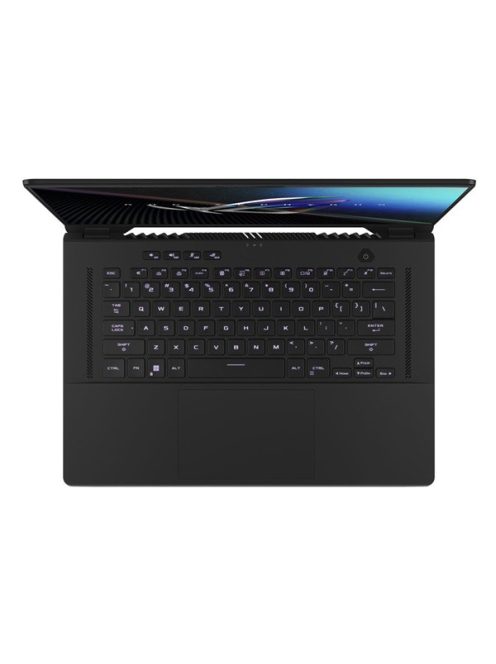

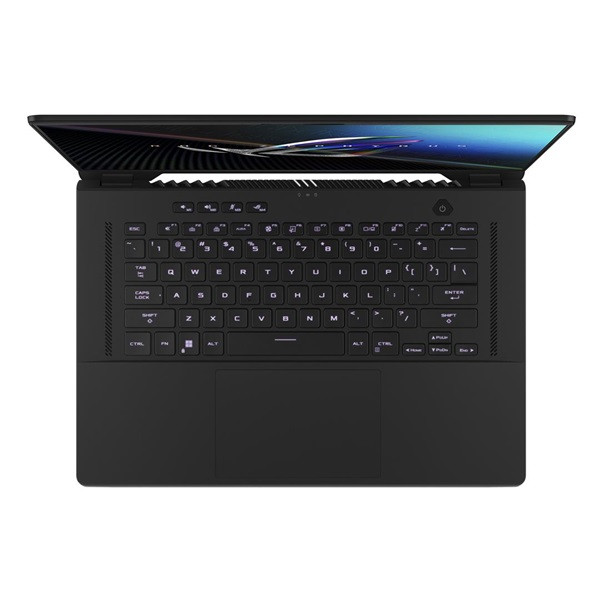

| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| NumberPad |
N/A |
| Aura Sync |
Yes |
| Speakers |
2x 2W dual-force woofer with Smart Amp Technology
2x 2W Tweeter |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology |
| Operating System |
Windows 11 Home |
| Antivirus |
MCAFEE_30D |
| Xbox Game Pass |
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
o6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Ecolabels & Compliances |
N/A |
