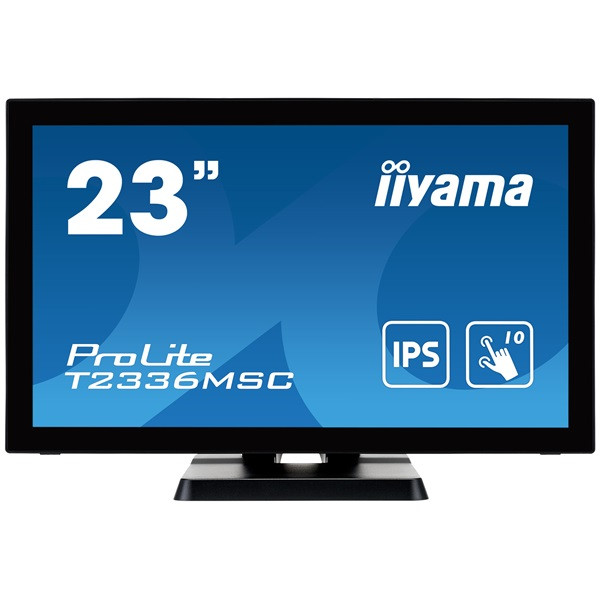

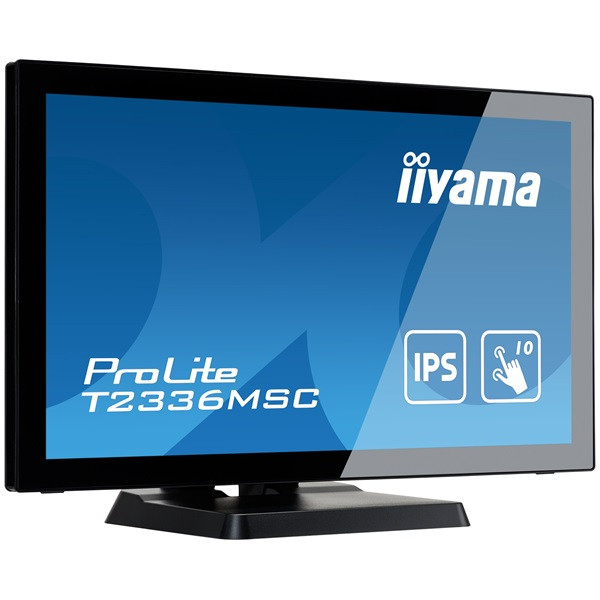

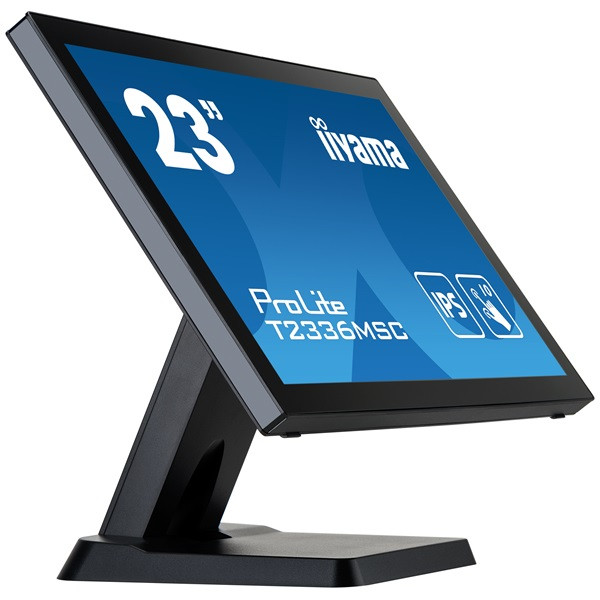

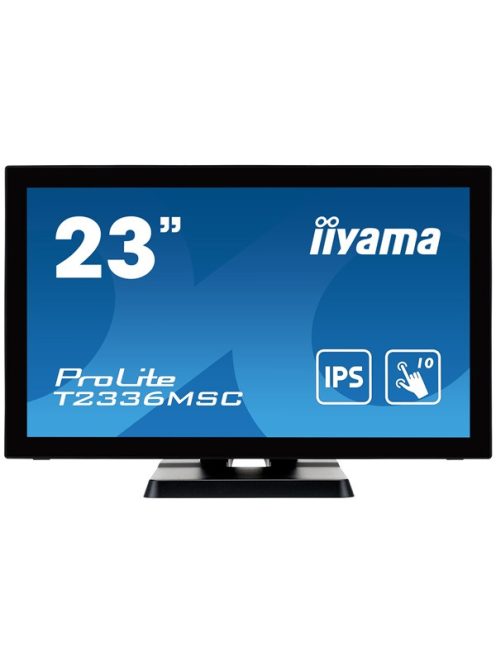

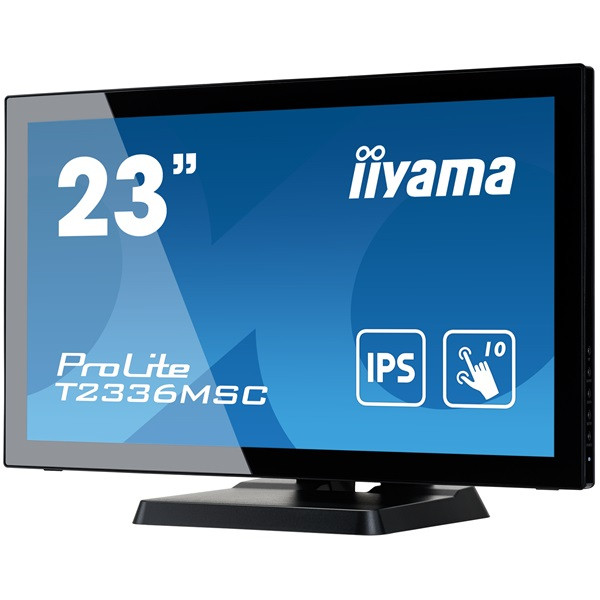

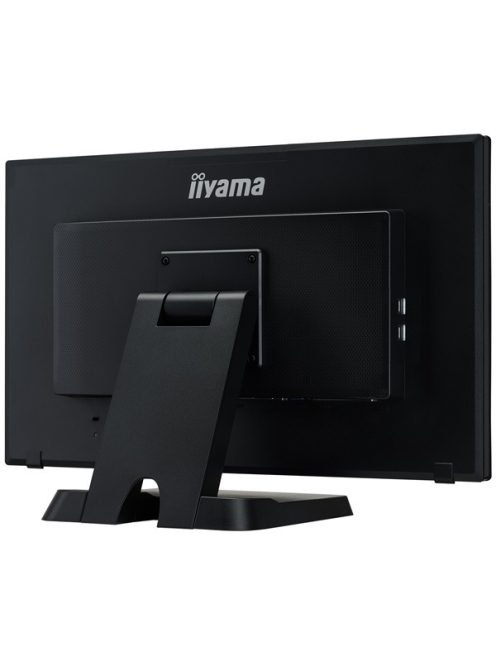

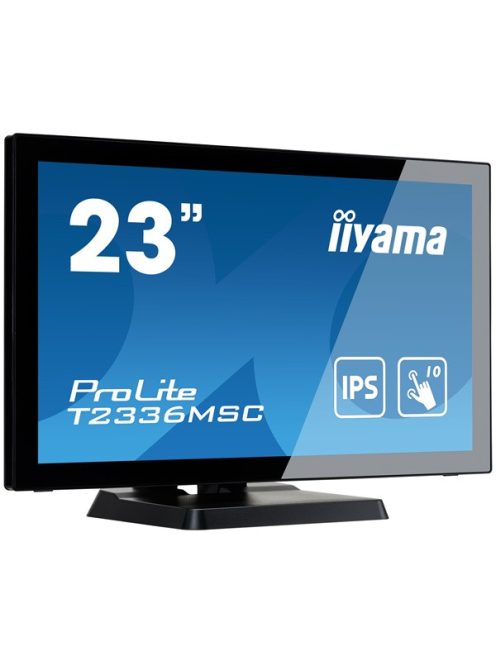

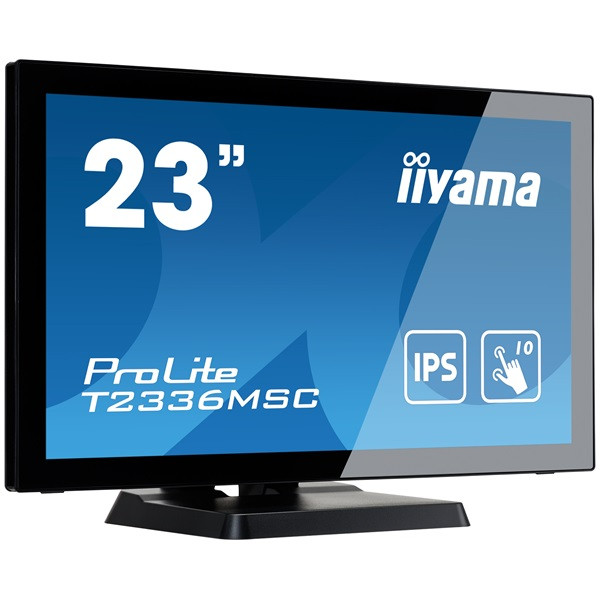

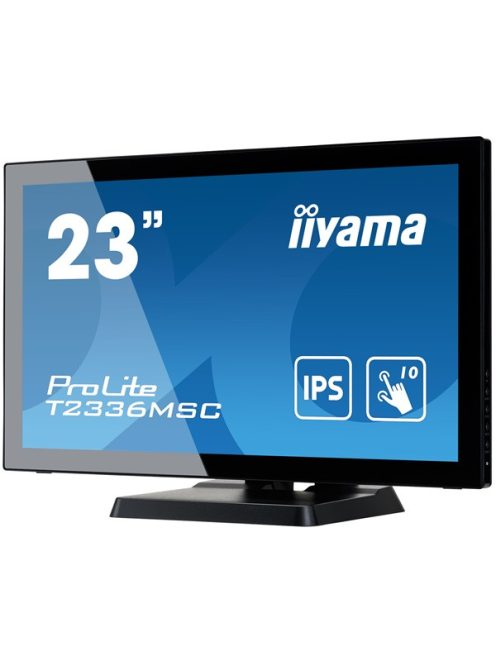

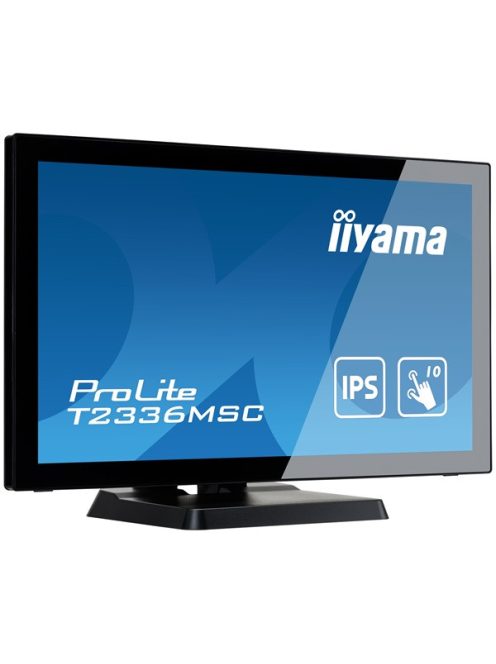

PROLITE T2336MSC-B3 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
23", 58.4cm |
| Panel |
IPS LED |
| Native resolution |
1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
250 cd/m² |
| Brightness |
215 cd/m² with touch |
| Light transmittance |
85% |
| Static contrast |
1 000:1 with touch |
| Advanced contrast |
5M:1 |
| Response time (GTG) |
5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln |
| Horizontal Sync |
30 - 80kHz |
| Viewable area W x H |
509.2 x 286.4mm, 20 x 11.3" |
| Pixel pitch |
0.2652mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
DVI x1
HDMI x1 |
| Audio output |
Speakers 2 x 2W |
| USB HUB |
x4 (v.3.0) |
| |
|
| FEATURES |
|
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, CN, RU, JP |
| Control buttons |
Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power |
| User controls |
luminance (contrast, brightness, ECO, i-Style colour, ACR), image setup (clock, phase, H.position, V.position, aspect), colour temp., OSD setup (H.position, V. position, timeout, language), extra (reset, signal select, HDMI audio, OD, information), volume, auto adjust |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

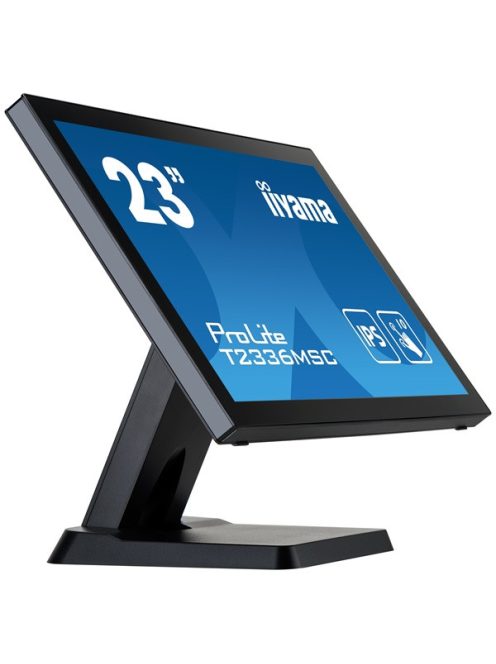

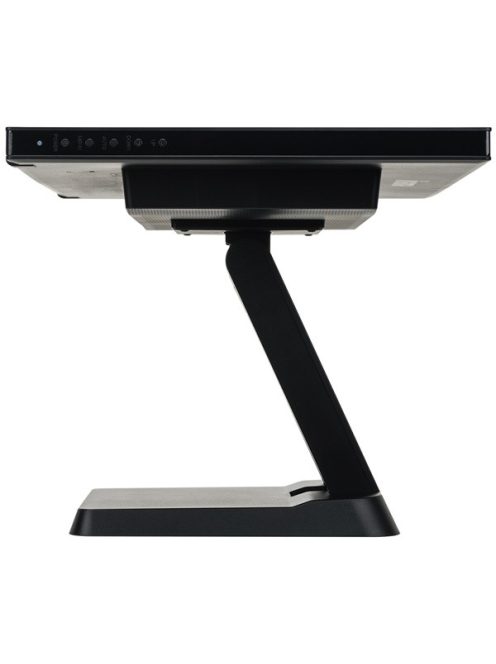

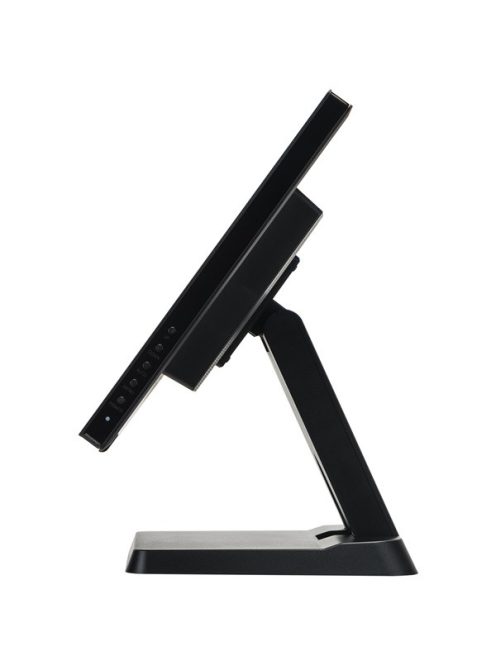

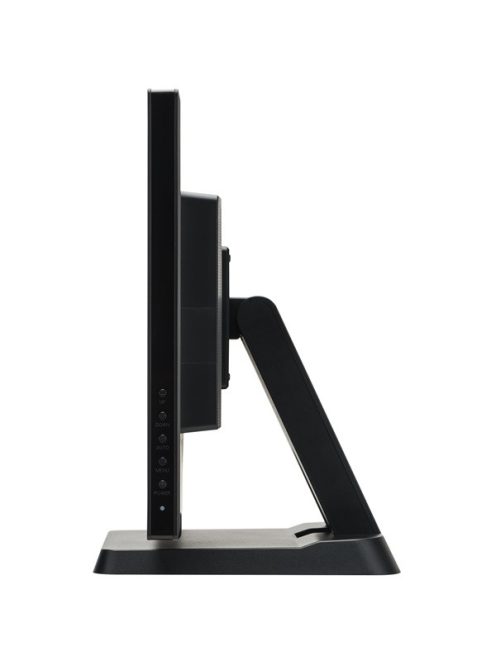

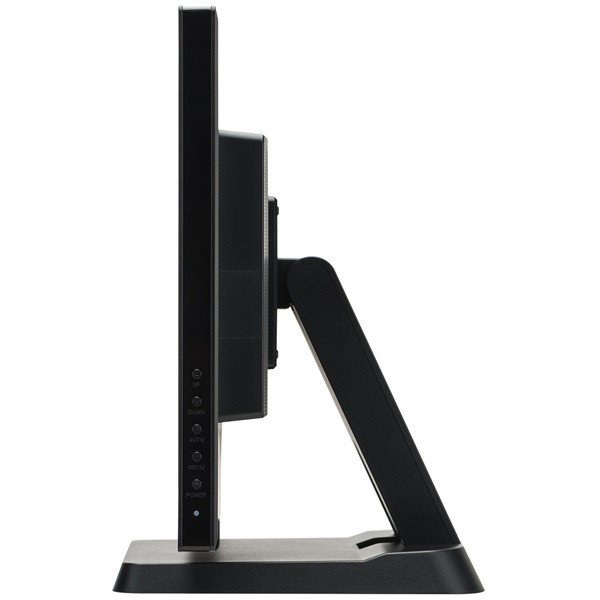

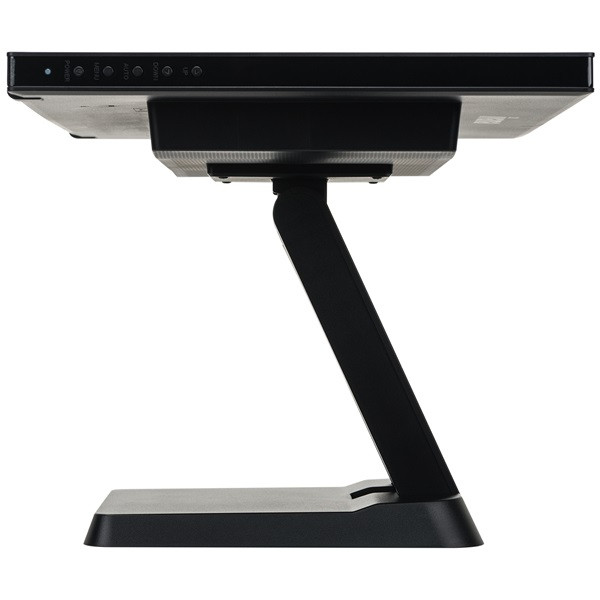

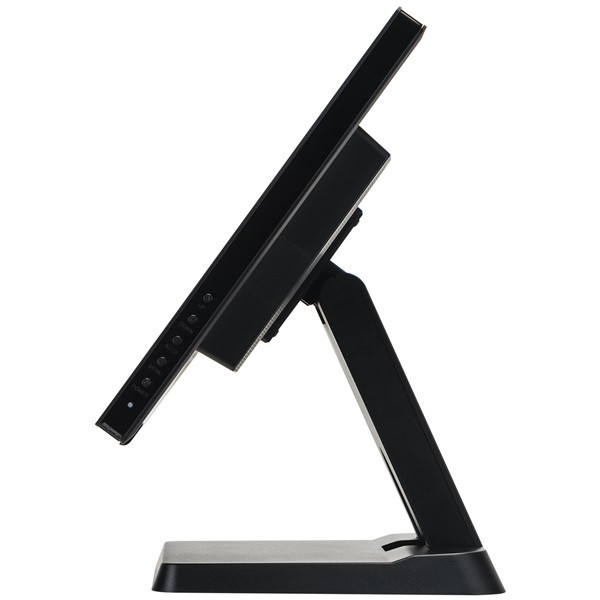

| Tilt angle |
90° up; 5° down |

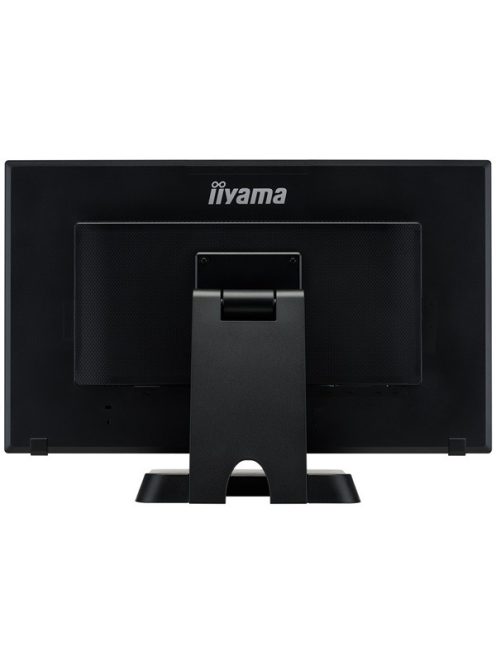

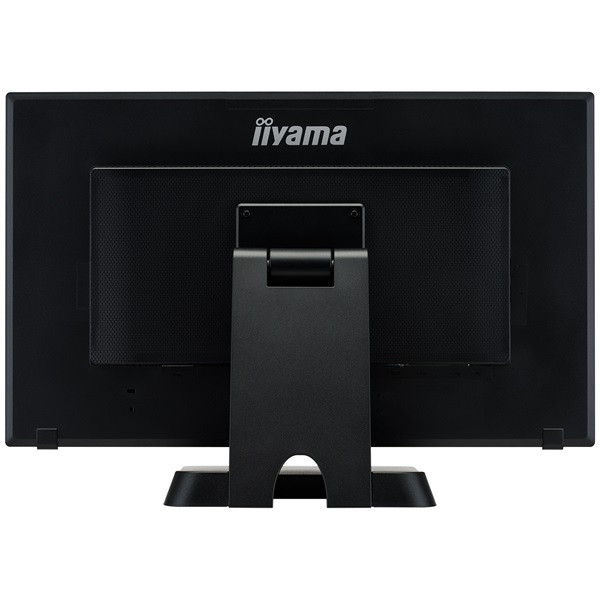

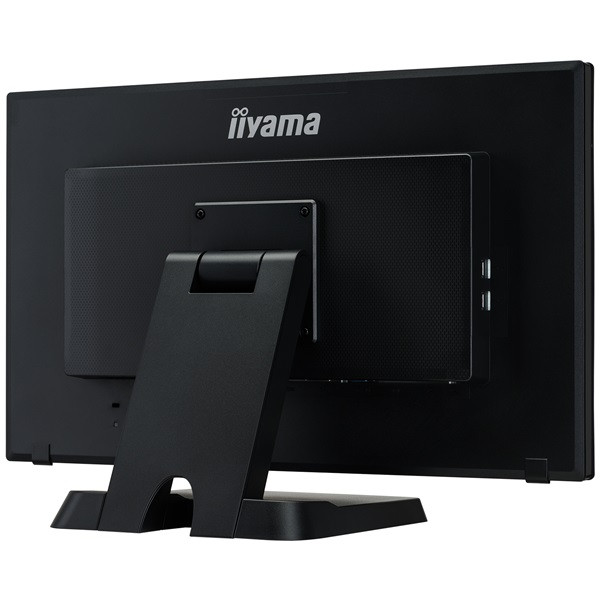

| VESA mounting |
100 x 100mm |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
16W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
561 x 379 x 254mm |
| Weight (without box) |
6.3kg |
| EAN code |
4948570121083 |
